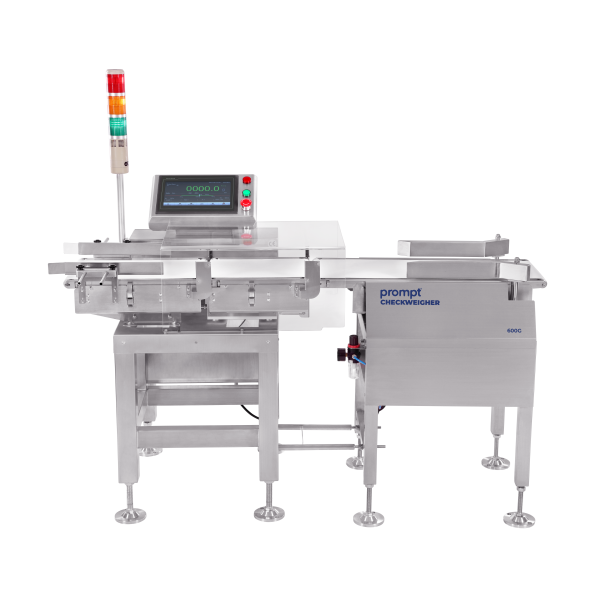

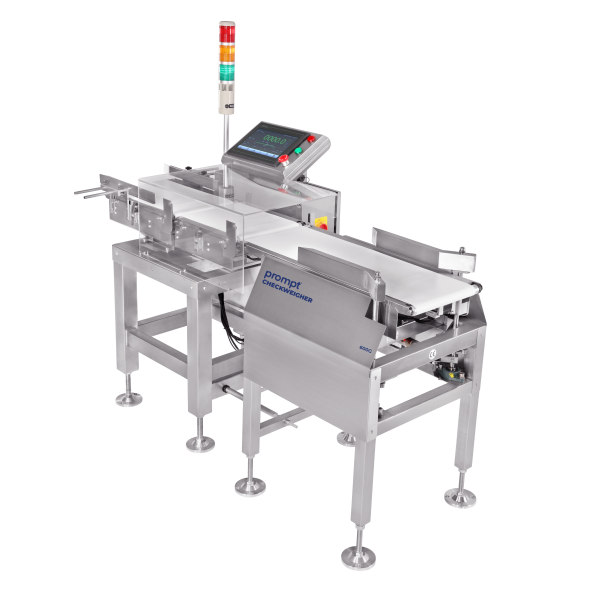

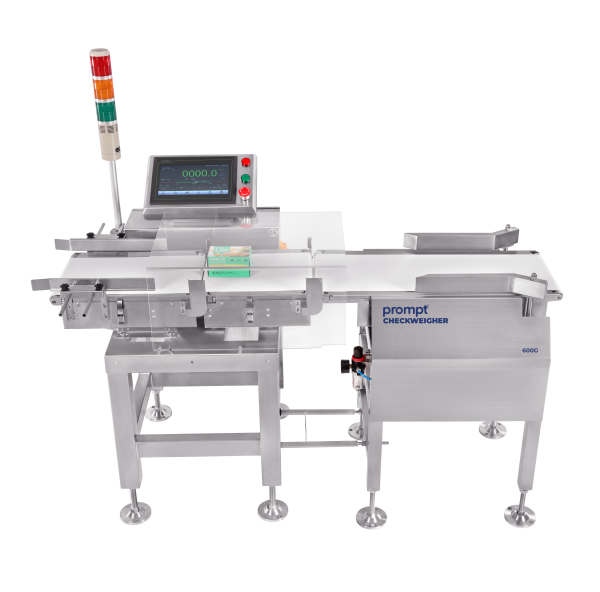

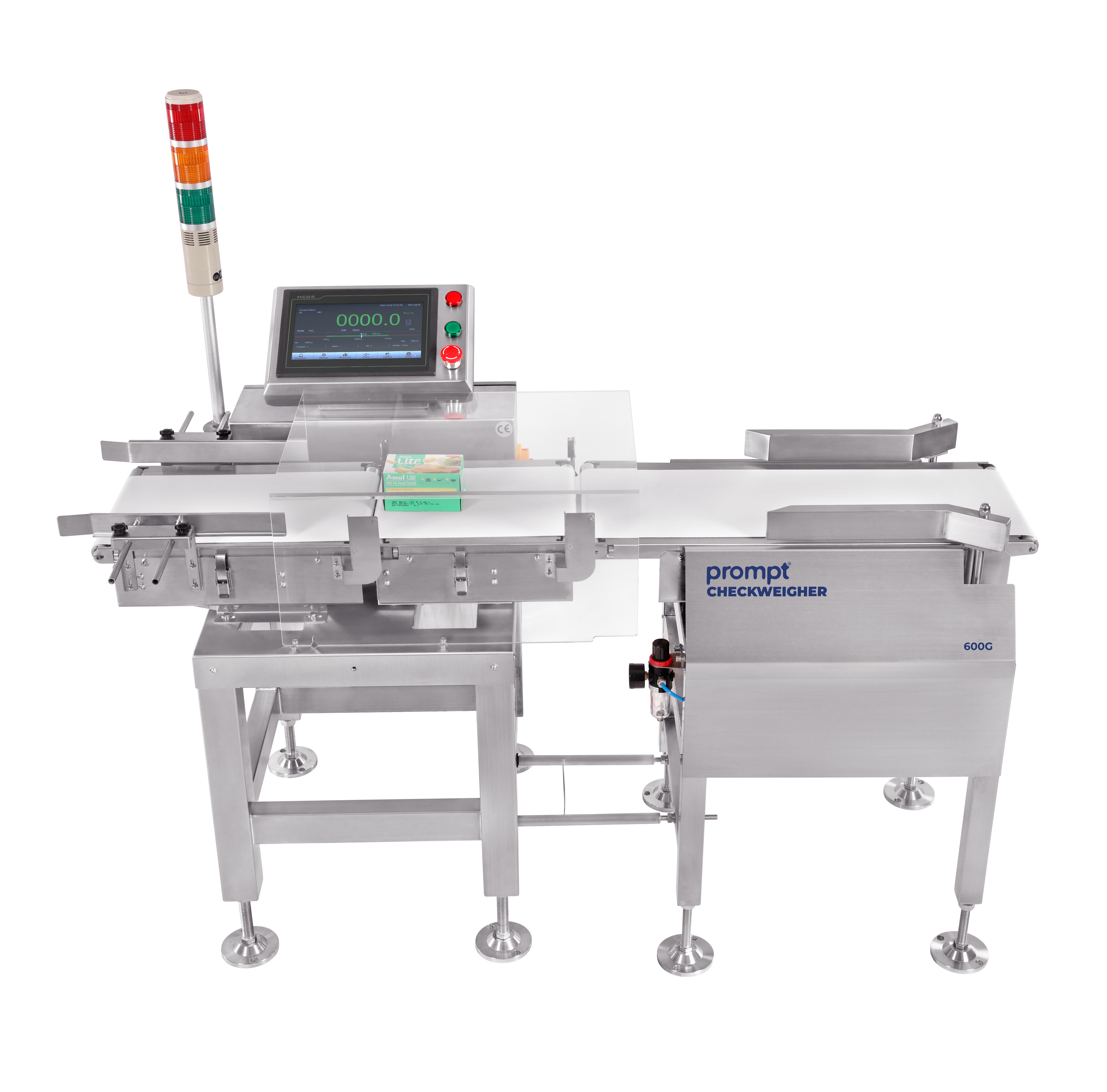

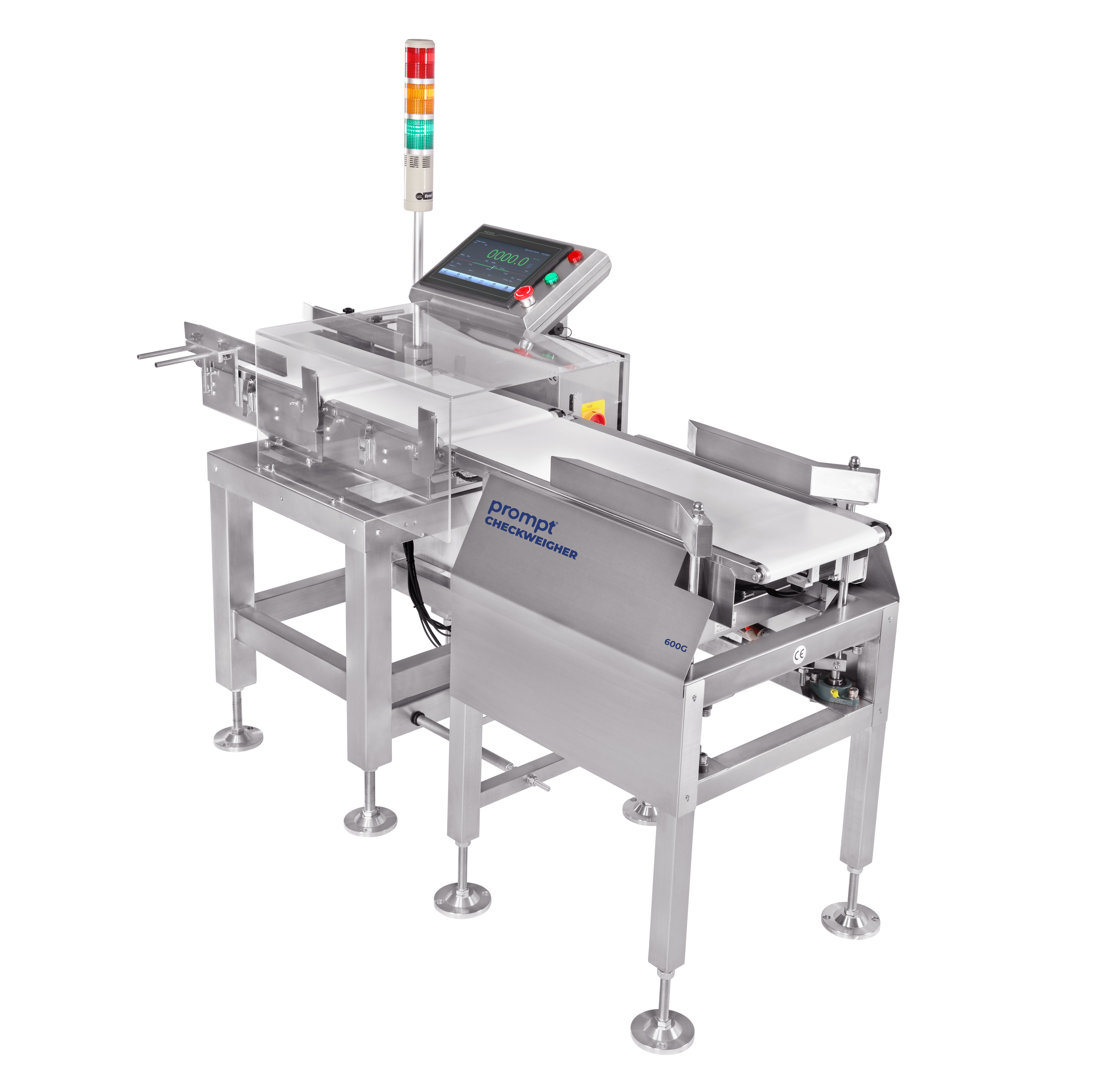

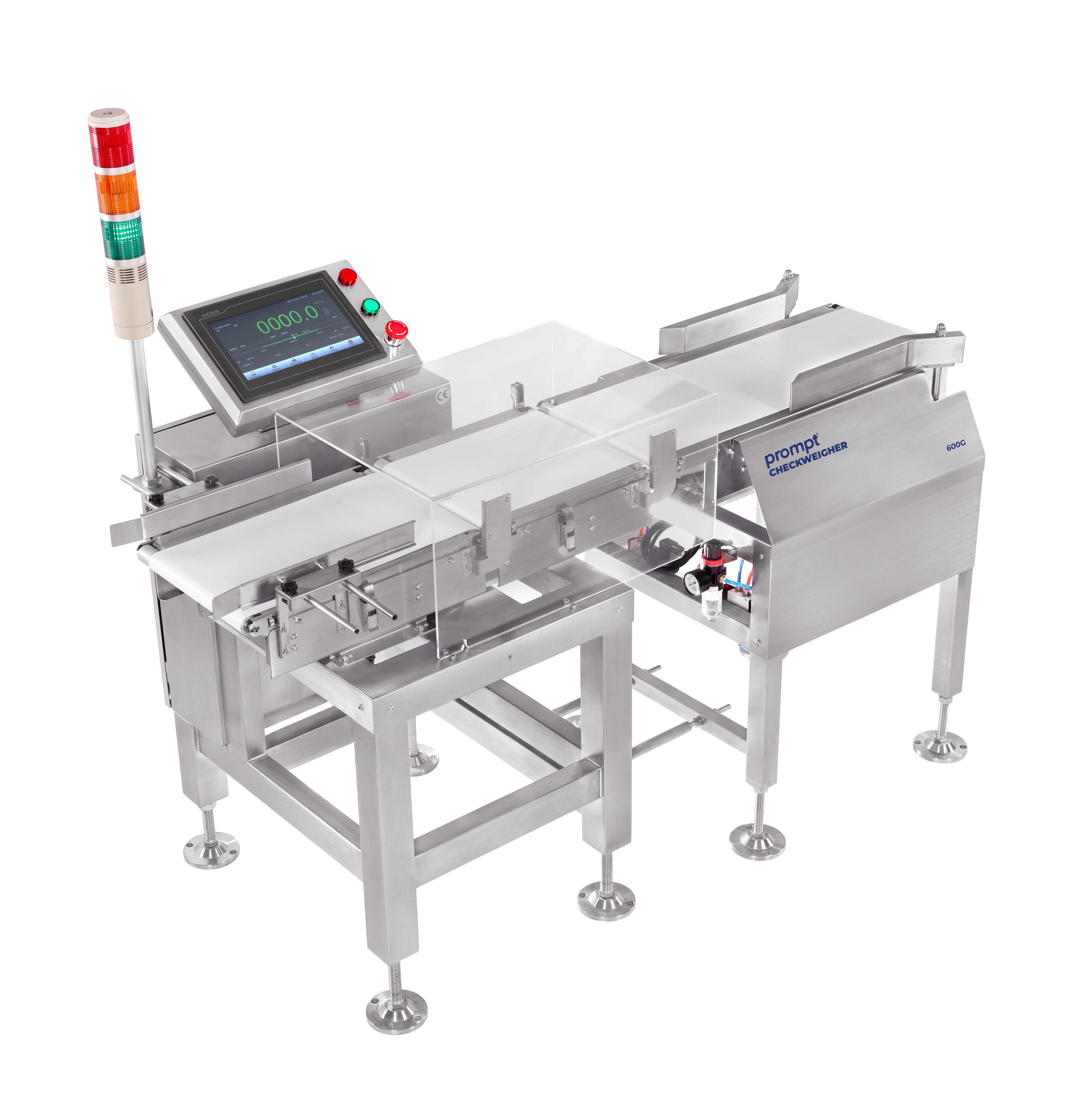

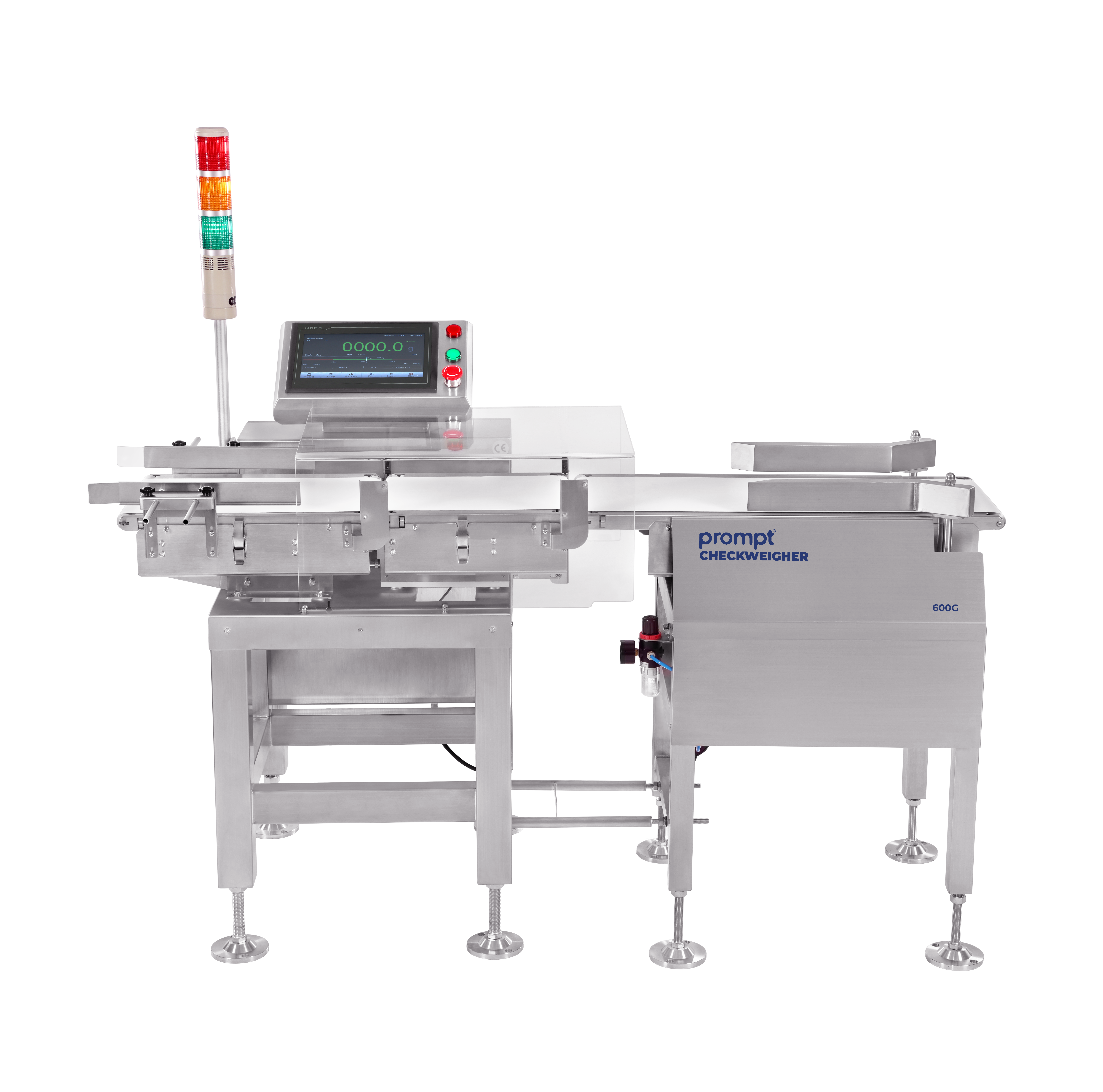

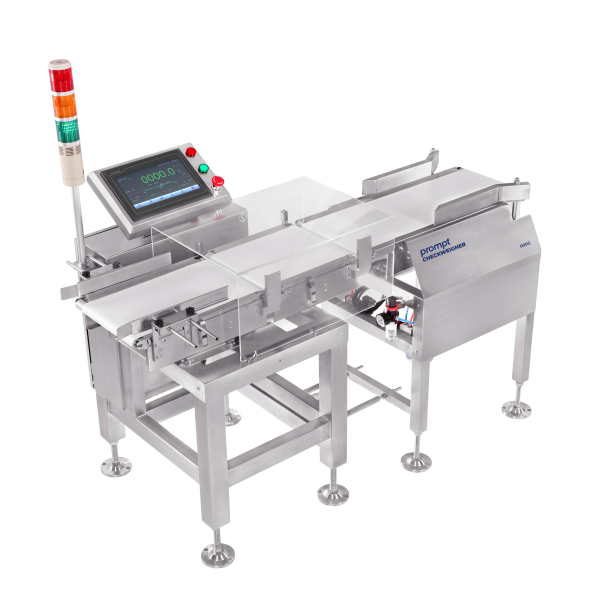

Checkweigher 600G
Dynamic Checkweigher Solutions Vital for Industries
Our CW-600G Checkweighing system checks, measures, and removes products manufactured outside the set weight criteria. The high precision Checkweigher is precisely configured for the control of packaged and unpackaged products in different industries. They come with automatic weighing compensation, systemised measuring time adjustment and require zero tracking.
Our Inline Checkweigher Solutions
Our automatic checkweigher machine can be utilised for pharma, snack, food, spices, toy and other industrial applications. It provides real-time data and statistical reports right to the production line to monitor and track the manufacturing processes explicitly. It is highly user friendly with lesser sustenance costs and can run across any extreme scenarios. It offers highly optimal and effective outcomes without compromising on safety, security and superior quality.
Benefits of Our Online Check Weigher Machine
Accurate weighing and precision in products through Checkweigher 600G offer consumers with 100% quality assurance. Our Checkweigher Solutions reduces product recalls and safeguards branding aspects, which play a vital role in steering customer repeat purchases and justifies costs.
Our industrial checkweigher ensure enhanced production tolerances that facilitate more final products to be manufactured from minimal inventory. We are one of the leading Checkweigher manufacturers in India, and our online check weigher machines are an integral part of diverse production set-ups.
Related products
- High visibility 10inch TFT screen with graphic user interface
- Automatic weighing compensation and zero tracking
- Automatic measuring time adjustment
- Bag or case weighing up to 600g
- Easy integration in almost every production line
- Excellent accuracy, especially with flexible packaging
- 1,000,000pcs weight value for production statistics
- Data storage and data printout facility
- Variable belt speed control
- Designed for the control of packaged and unpackaged goods
- Statistics programs for evaluation
- Designed Especially for Pharma, Food, Spices & Components manufacturer
- Statistical Data Report facility
- IP 54 Protection
| Model | Checkweigher CW-600g | |
| Scale Division | 0.1g | |
| Weighing range | 5~600g | |
| Accuracy | ±0.5g | |
| Weighing speed | 140 pcs/min | |
| Belt speed | 5-90meter/min | |
| Platform size | 330x310mm | |
| Height | 750±50mm | |
| Belt size | 300x250mm | |
| Belt material | PU (White) | |
| Belt thickness | 0.7mm | |
| Tested object size | 50-2400×20-150×10-180mm | |
| Display size | 10 inch | |
| Alarm light | 3-color signal light | |
| Alam horn | Optional | |
| Holder/Frame material | 304 stainless steel | |
| Weigher platform material | 304 stainless steel | |
| Data storage | 100 sets of parameters and 1 million weighing results | |
| Communication | RS485 (Modbus RTU)/Modbus TCP/IP | |
| Rejection mechanism | Pusher, Swing ~ arm type, Flap type to Pusher, swing / Divertor arm | |
| Air pressure | 0.4~0.6 MPa | |
| Segment | 3 levels | |
| IP grade | IP54 |
Checkweigher 600G
Brochure
Download
FAQ
Clearing Up Your Queries and Providing Informed Solutions
What is Prompt Equipments Pvt Ltd?
Prompt Equipments Pvt Ltd is a company that specializes in the manufacture of online Checkweigher, Weighing controllers, bag-filling machinery and other weighing and automation solution provider.

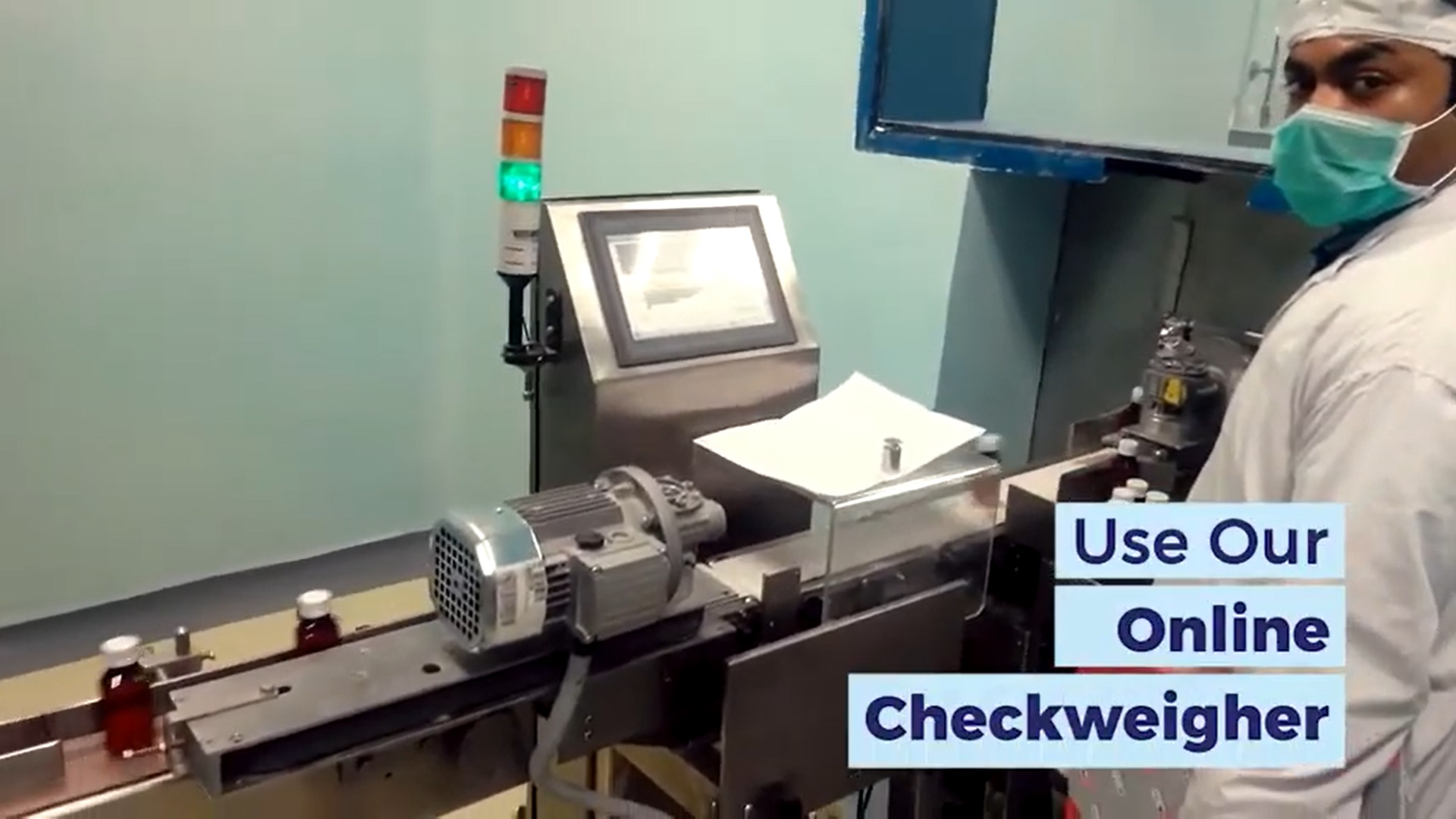

What is an online Checkweigher?
An online Checkweigher is a machine used in the packaging industry to measure the weight of products during the manufacturing process. It is normally found at the off-going end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits. Any packs that are outside the tolerance are taken out of line automatically.
What models of online Checkweigher are available from Prompt Equipments Pvt Ltd?
Prompt offers online Checkweigher in six different models, ranging from 100gm to 60kg. The model is 100gm, 600gm, 1200gm, 6kg, 15kg, and 60kg.
What is the capacity of the online Checkweigher from Prompt Equipments Pvt Ltd?
The capacity of the online Checkweigher from Prompt Equipments Pvt Ltd ranges from 100gm to 60kg.
What is the purpose of over and underweight detection and rejection in the online Checkweigher?
The purpose of over and underweight detection and rejection in the online Checkweigher is to ensure that all products meet the specified weight requirements and to reject any products that are outside of the specified weight range.
Can the online Checkweigher control packaging machines?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd have the capability to control packaging machines with a tendency feedback control system to save material costs.
What are the benefits of using an online Checkweigher?
Using an online Checkweigher can eliminate legal issues, save material costs, labour costs and ensure that all products meet weight requirements.
What is the optional Central data analysis software?
The optional Central data analysis software allows users to analyse data collected by the online Checkweigher and make informed decisions about the manufacturing process.
Can the online Checkweigher achieve 100% in-line weighing?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd can achieve 100% in-line weighing.
How do you select the appropriate model of online Checkweigher?
The appropriate model of online Checkweigher depends on factors such as the size and speed of the product, as well as the height of the conveyor.
Are the online Checkweigher from Prompt Equipments Pvt Ltd easy to operate?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd are designed to be easy to operate.
Are the online Checkweigher from Prompt easy to maintain?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd are designed to be easy to maintain, with low maintenance costs.
Can the online Checkweigher be used in multiple industries?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd can be used in multiple industries like food, Spices, Pharma, healthcare, automobile, electrical accessories, pesticides, chemical, paper mill, Agro commodities etc.
What are the different applications of online Checkweigher?
Online Checkweigher can be used in applications such as food and beverage packaging, pharmaceutical packaging, and industrial manufacturing.
What are the benefits of using online Checkweigher in the packaging industry?
Using online Checkweigher in the packaging industry can help to reduce waste, saving material cost, increase efficiency, eliminates the legal issues and ensure that products meet regulatory requirements.
On which principle Checkweigher works?
Checkweigher works on load cell technology.
What is the different rejection system in Checkweigher?
Pusher type, Diverter type, Air Jet, Drop down etc.
