Checkweigher 60Kg-V

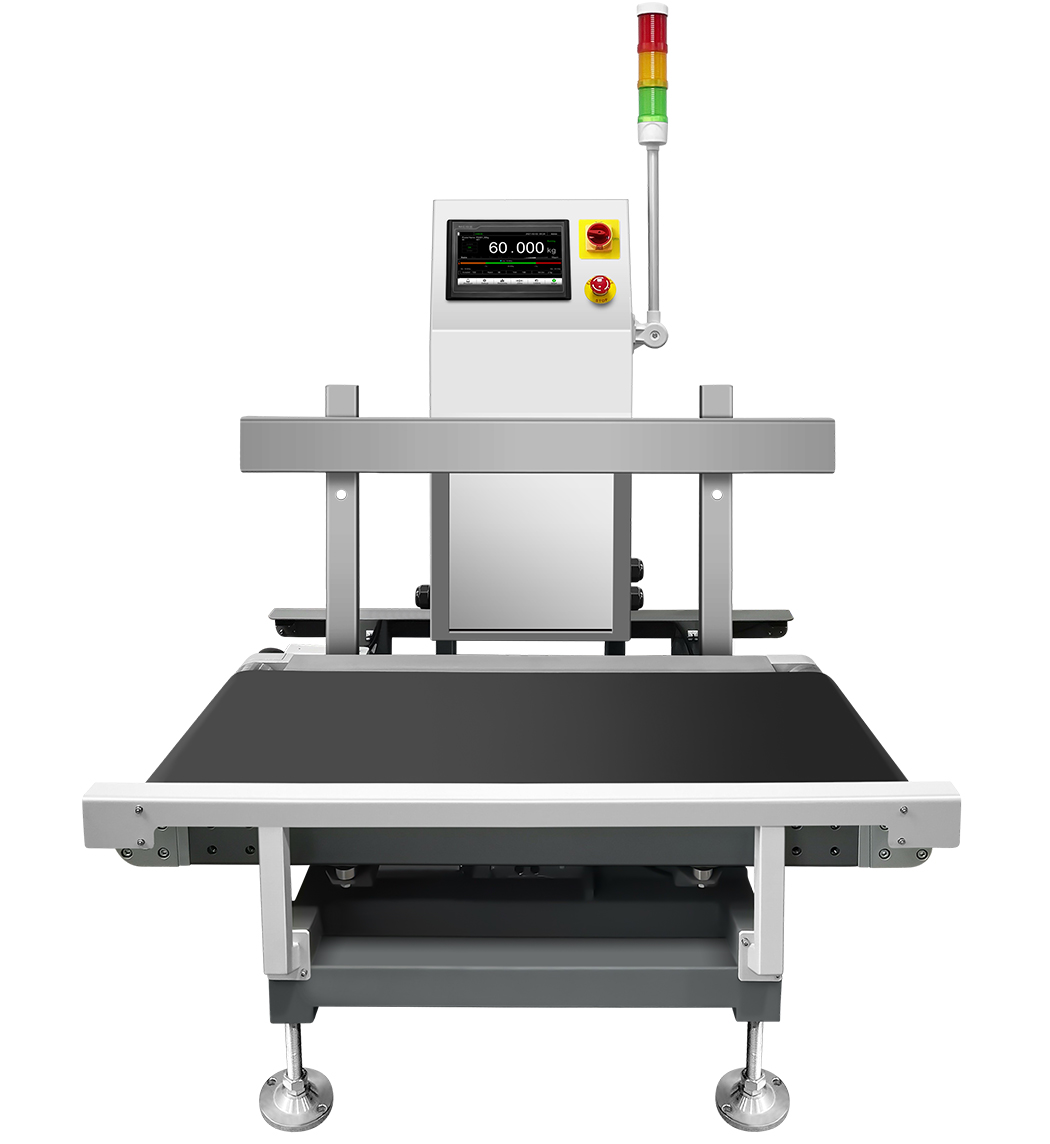

CW 60K-V is a checkweigher designed to fit in any manufacturing or packaging operation line. The machine guarantees the highest accuracy in terms of checkweighing. It can measure a wide weighing range of packaged and unpackaged items in a production line. The body is made of SS304 stainless steel to ensure durability.
Related products
- Bright 10-inch TFT touchscreen connected to a graphics interface
- SS304 stainless steel body for all industrial environments
- Red, green, and yellow indicator light
- Case or bag weight measurement up to 60 kg
- Height adjustment with anti-vibration legs
- Easy integration in a vertical production or packaging line
- Measuring time adjusted automatically
- RS485 interface and Ethernet connectivity
- Accuracy range ±20g
- Faster and simpler product weighing and identification
- Up to 1 million weight values stored for statistical analysis
- Belt speed can be controlled

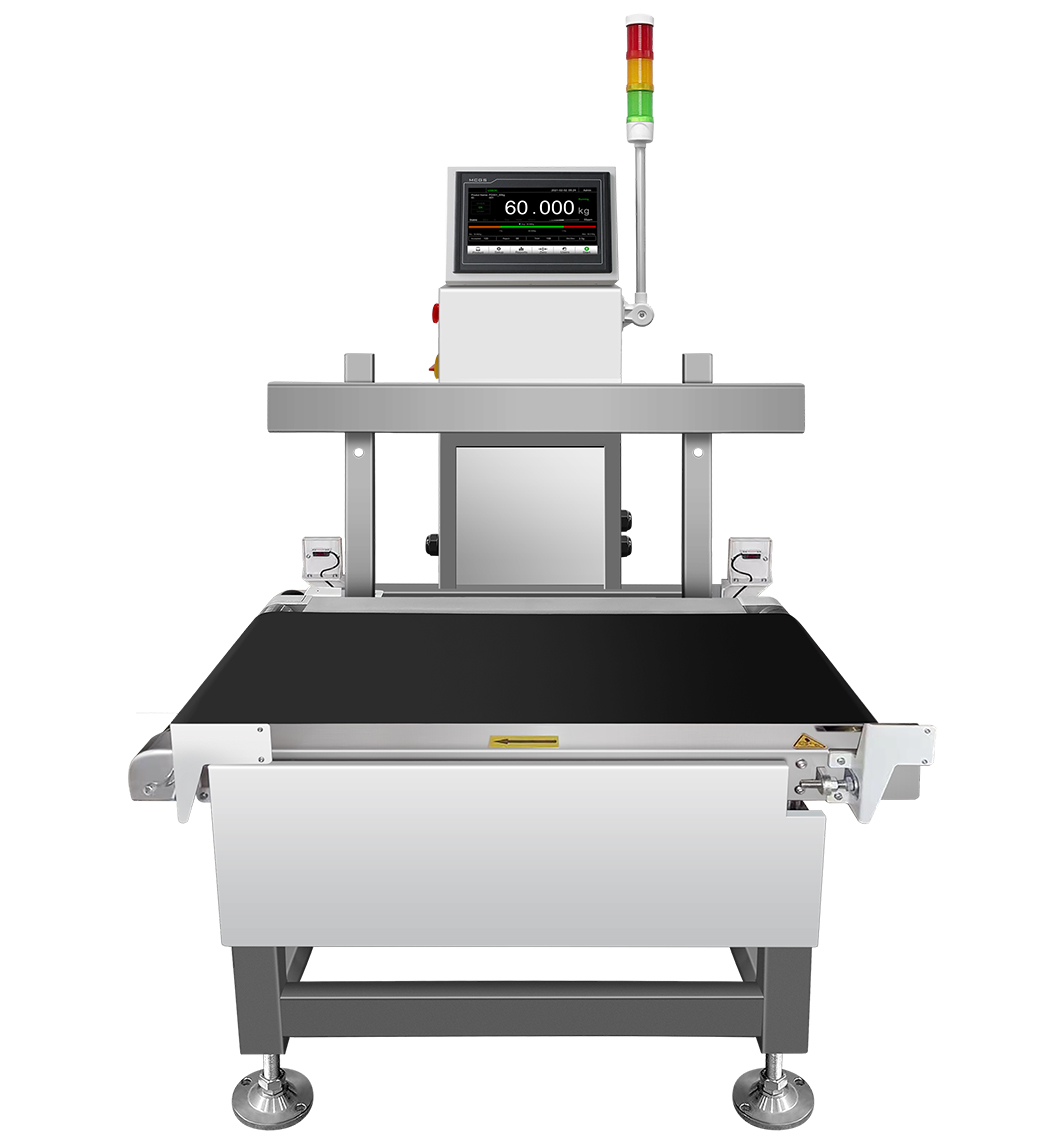

- Available in two models as per accuracy
| Model | CW-60K-V | CW-60K-V Economy Type |
| Power | AC220V±10%, 50/60Hz, 1KW | AC220V±10%, 50/60Hz, 1KW |
| Weighing Range | 5~60kg | 5~60kg |
| Highest Accuracy* | ±10g | ±20g |
| Highest Speed* | ≤50pcs/min | ≤30pcs/min |
| Tested Object Size | Length: 100~600mm, Width: 50~400mm Height: 50~600mm |
Length: 100~600mm, Width: 50~400mm Height: 50~600mm |
| Belt Speed | 40m/min | 40m/min |
| Conveyor Size | 800mm*400mm | 800mm*400mm |
| Distance Between Rollers | 800mm | 800mm |
| Weighing Platform Height | 400 (±50mm) | 400 (±50mm) |
| Structure Material | Carbon Steel, SS304 (weighing Platform) | Carbon Steel, SS304 (weighing Platform) |
| Belt Material | PVC (black) | PVC (black) |
| Display | 10-inch touch screen | 10-inch touch screen |
| Working Temperature | 0~40°C | 0~40°C |
| Max. Humidity | 90% R.H, non-condensation | 90% R.H, non-condensation |
| Load Limit | The instantaneous load limit is 100kg | The instantaneous load limit is 100kg |
| *It depends on the features of tested object, such as size and weight. |
FAQ
Clearing Up Your Queries and Providing Informed Solutions
What is Prompt Equipments Pvt Ltd?
Prompt Equipments Pvt Ltd is a company that specializes in the manufacture of online Checkweigher, Weighing controllers, bag-filling machinery and other weighing and automation solution provider.
What is an online Checkweigher?
An online Checkweigher is a machine used in the packaging industry to measure the weight of products during the manufacturing process. It is normally found at the off-going end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits. Any packs that are outside the tolerance are taken out of line automatically.
What models of online Checkweigher are available from Prompt Equipments Pvt Ltd?
Prompt offers online Checkweigher in six different models, ranging from 100gm to 60kg. The model is 100gm, 600gm, 1200gm, 6kg, 15kg, and 60kg.
What is the capacity of the online Checkweigher from Prompt Equipments Pvt Ltd?
The capacity of the online Checkweigher from Prompt Equipments Pvt Ltd ranges from 100gm to 60kg.
What is the purpose of over and underweight detection and rejection in the online Checkweigher?
The purpose of over and underweight detection and rejection in the online Checkweigher is to ensure that all products meet the specified weight requirements and to reject any products that are outside of the specified weight range.
Can the online Checkweigher control packaging machines?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd have the capability to control packaging machines with a tendency feedback control system to save material costs.
What are the benefits of using an online Checkweigher?
Using an online Checkweigher can eliminate legal issues, save material costs, labour costs and ensure that all products meet weight requirements.
What is the optional Central data analysis software?
The optional Central data analysis software allows users to analyse data collected by the online Checkweigher and make informed decisions about the manufacturing process.
Can the online Checkweigher achieve 100% in-line weighing?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd can achieve 100% in-line weighing.
How do you select the appropriate model of online Checkweigher?
The appropriate model of online Checkweigher depends on factors such as the size and speed of the product, as well as the height of the conveyor.
Are the online Checkweigher from Prompt Equipments Pvt Ltd easy to operate?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd are designed to be easy to operate.
Are the online Checkweigher from Prompt easy to maintain?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd are designed to be easy to maintain, with low maintenance costs.
Can the online Checkweigher be used in multiple industries?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd can be used in multiple industries like food, Spices, Pharma, healthcare, automobile, electrical accessories, pesticides, chemical, paper mill, Agro commodities etc.
What are the different applications of online Checkweigher?
Online Checkweigher can be used in applications such as food and beverage packaging, pharmaceutical packaging, and industrial manufacturing.
What are the benefits of using online Checkweigher in the packaging industry?
Using online Checkweigher in the packaging industry can help to reduce waste, saving material cost, increase efficiency, eliminates the legal issues and ensure that products meet regulatory requirements.
On which principle Checkweigher works?
Checkweigher works on load cell technology.
What is the different rejection system in Checkweigher?
Pusher type, Diverter type, Air Jet, Drop down etc.
