Precision in Every Measure
Elevate Your Experience with Our Weighing and Packaging Solutions
Search For Products
Product Categories

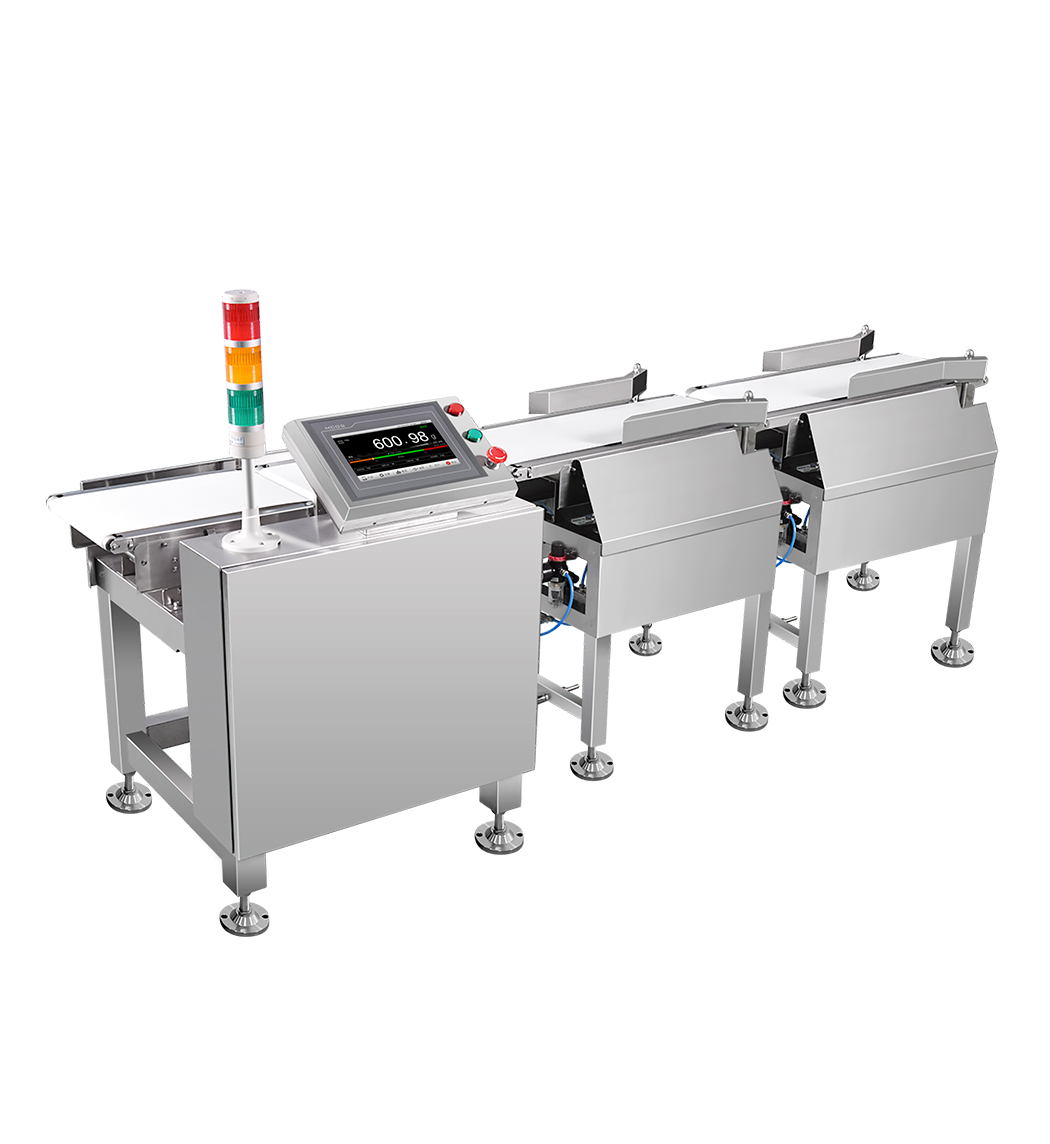

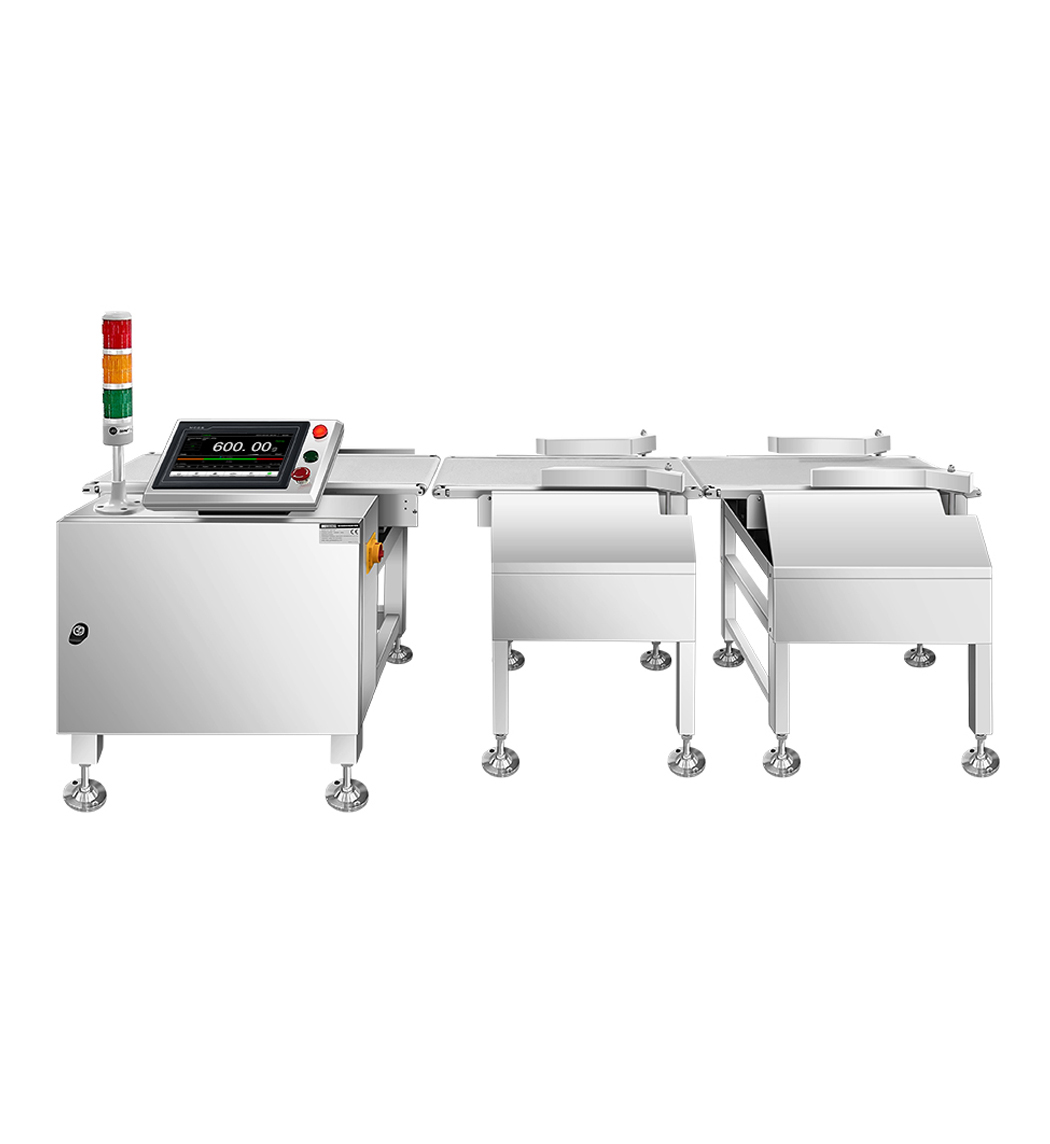

Weight Check & Sorting Machine
Prompt Checkweigher + Sorting machine offers efficient weighing and sorting solutions for manufacturing and packaging industries. It comprises top-notch features for sorting 5 – 7 weight grades. This machine can be used for weighing and sorting bags, containers, bottles, and raw materials, etc. The machine body is made of durable SS304 stainless steel. The user interface can store more than 1,000,000 entries for statistical evaluation.
Related products
User-friendly interface
- Highly-visible 10-inch TFT screen
- User interface with graphics – can store 1 million data
- Data can be exported via a USB port
- Automatic zero tracking and weighing compensation
- Measuring time can be adjusted automatically
Product adjustment flexibility
- Case, bags, or products weighing up to 1200 g
- Easy installation and integration with any production line
Efficient weighing and sorting features
- Accurate and compatible with flexible packaging
- Production statistics data of 1,000,000 pieces available
- Printable data ready for export through a USB port
- Easy integration with weighing and packaging line
- Continuous belt speed control and variation
Design features
- Ideal for unpackaged and packaged goods
- Designed for food, pharmaceutical, agro, and other industries
- High-quality electronic interface
- Highly durable conveyor components
- Designed for data-driven statistical evaluation of industrial operations
| Model | CW-1.2K | |
| Weighing range | 10~1200g | |
| Scale division | 0.1g | |
| Highest Accuracy(3σ) * | ±0.5g | |
| Highest Weighing speed * | 120 pcs/min | |
| Belt speed | 5~50 m/min | |
| Belt size | 400x250mm | |
| Weighing platform Height ** | 750±50mm | |
| Tested object size | Length: 50~300mm Width: 20~220mm Height: 10~220mm | |
| Belt material | PU (white) | |
| Structure of the material | SS304 stainless steel | |
| Alarm light | 3-color signal light (Red, yellow, green), Optional buzzer | |
| Display size | 10-inch color touch screen | |
| Rejector lineup | Options: swing type, push type rejector | |
| Power | Single Phase AC-220V ±10%, 50/60HZ | |
| operating temperature | 0~40°C | |
| IP grade | IP65 |
FAQ
Clearing Up Your Queries and Providing Informed Solutions
What is Prompt Equipments Pvt Ltd?
Prompt Equipments Pvt Ltd is a company that specializes in the manufacture of online Checkweigher, Weighing controllers, bag-filling machinery and other weighing and automation solution provider.
What is an online Checkweigher?
An online Checkweigher is a machine used in the packaging industry to measure the weight of products during the manufacturing process. It is normally found at the off-going end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits. Any packs that are outside the tolerance are taken out of line automatically.
What models of online Checkweigher are available from Prompt Equipments Pvt Ltd?
Prompt offers online Checkweigher in six different models, ranging from 100gm to 60kg. The model is 100gm, 600gm, 1200gm, 6kg, 15kg, and 60kg.
What is the capacity of the online Checkweigher from Prompt Equipments Pvt Ltd?
The capacity of the online Checkweigher from Prompt Equipments Pvt Ltd ranges from 100gm to 60kg.
What is the purpose of over and underweight detection and rejection in the online Checkweigher?
The purpose of over and underweight detection and rejection in the online Checkweigher is to ensure that all products meet the specified weight requirements and to reject any products that are outside of the specified weight range.
Can the online Checkweigher control packaging machines?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd have the capability to control packaging machines with a tendency feedback control system to save material costs.
What are the benefits of using an online Checkweigher?
Using an online Checkweigher can eliminate legal issues, save material costs, labour costs and ensure that all products meet weight requirements.
What is the optional Central data analysis software?
The optional Central data analysis software allows users to analyse data collected by the online Checkweigher and make informed decisions about the manufacturing process.
Can the online Checkweigher achieve 100% in-line weighing?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd can achieve 100% in-line weighing.
How do you select the appropriate model of online Checkweigher?
The appropriate model of online Checkweigher depends on factors such as the size and speed of the product, as well as the height of the conveyor.
Are the online Checkweigher from Prompt Equipments Pvt Ltd easy to operate?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd are designed to be easy to operate.
Are the online Checkweigher from Prompt easy to maintain?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd are designed to be easy to maintain, with low maintenance costs.
Can the online Checkweigher be used in multiple industries?
Yes, the online Checkweigher from Prompt Equipments Pvt Ltd can be used in multiple industries like food, Spices, Pharma, healthcare, automobile, electrical accessories, pesticides, chemical, paper mill, Agro commodities etc.
What are the different applications of online Checkweigher?
Online Checkweigher can be used in applications such as food and beverage packaging, pharmaceutical packaging, and industrial manufacturing.
What are the benefits of using online Checkweigher in the packaging industry?
Using online Checkweigher in the packaging industry can help to reduce waste, saving material cost, increase efficiency, eliminates the legal issues and ensure that products meet regulatory requirements.
On which principle Checkweigher works?
Checkweigher works on load cell technology.
What is the different rejection system in Checkweigher?
Pusher type, Diverter type, Air Jet, Drop down etc.
