GM7702

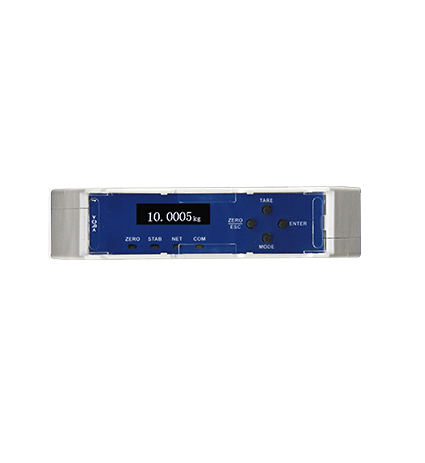

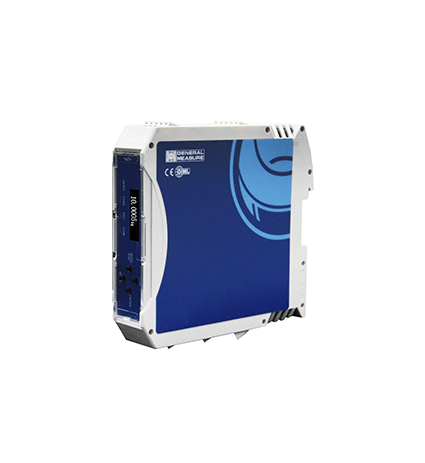

This digital weighing transmitter comes with the standard dimension, which makes it suitable for mounting on DIN. The dimension makes it versatile and suitable for a range of industries like feeds, chemical, concrete and bitumen mixing, metallurgy smelting, etc. This weighing transmitter has a small size and compact design, giving it easy integration capabilities. It offers excellent practicability, stability and ease of operations.
Related products
- With RS232/485 serial ports and support remote control
- Support tare, preset tare function
- Equipped with 2 IN 3 OUT I/O module

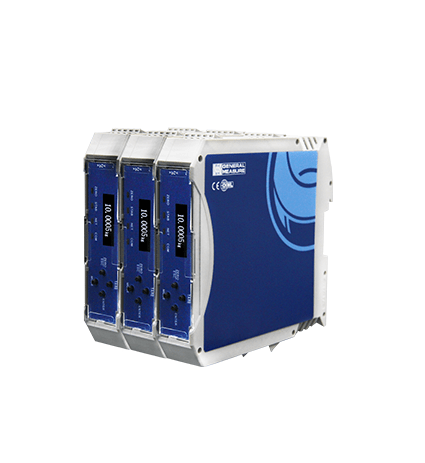

- Small size and flat compact design with standard 35mm DIN mounting.
- High Precision: A/D converter 120/240/480 times/sec.
- Optional 16bit high-precision analog output: 0~24mA, 0~5V, 0~10V and user-defined analog output
- CE Approved
- I/O programmable
- Compact Design
- EMC testing pass
- IP65 Protection
| General Specifications | ||
| Power Supply | DC24V | |
| Working temperature | -10~40°C | |
| Maximum humidity | 90% R.H without dew | |
| A/D converter | 24-bit Delta-Sigma | |
| A/D conversion speed | 120/240/480 SPS | |
| Non-linearity | 0.01% F.S | |
| Gain drift | 10PPM/°C | |
| Input sensitivity | 0.02μV/d | |
| Input range | 0.00-15mV | |
| Maximum display accuracy | 1/100000 | |
| Load cell power | DC5V 100mA(Max.) | |
| Input impedance | 10MΩ | |
| Zero steady range | 0.02~8mV (load cell 2mV/V) | |
| Inputs | 2, NPN zero / tare / trigger preset point n (n=1/2/3/4) | |
| Outputs | 3, 500mA Max. Stabilization/Overflow/Trigger Point n Output (n=1/2/3/4)/Upper/Middle/Lower Limit |
