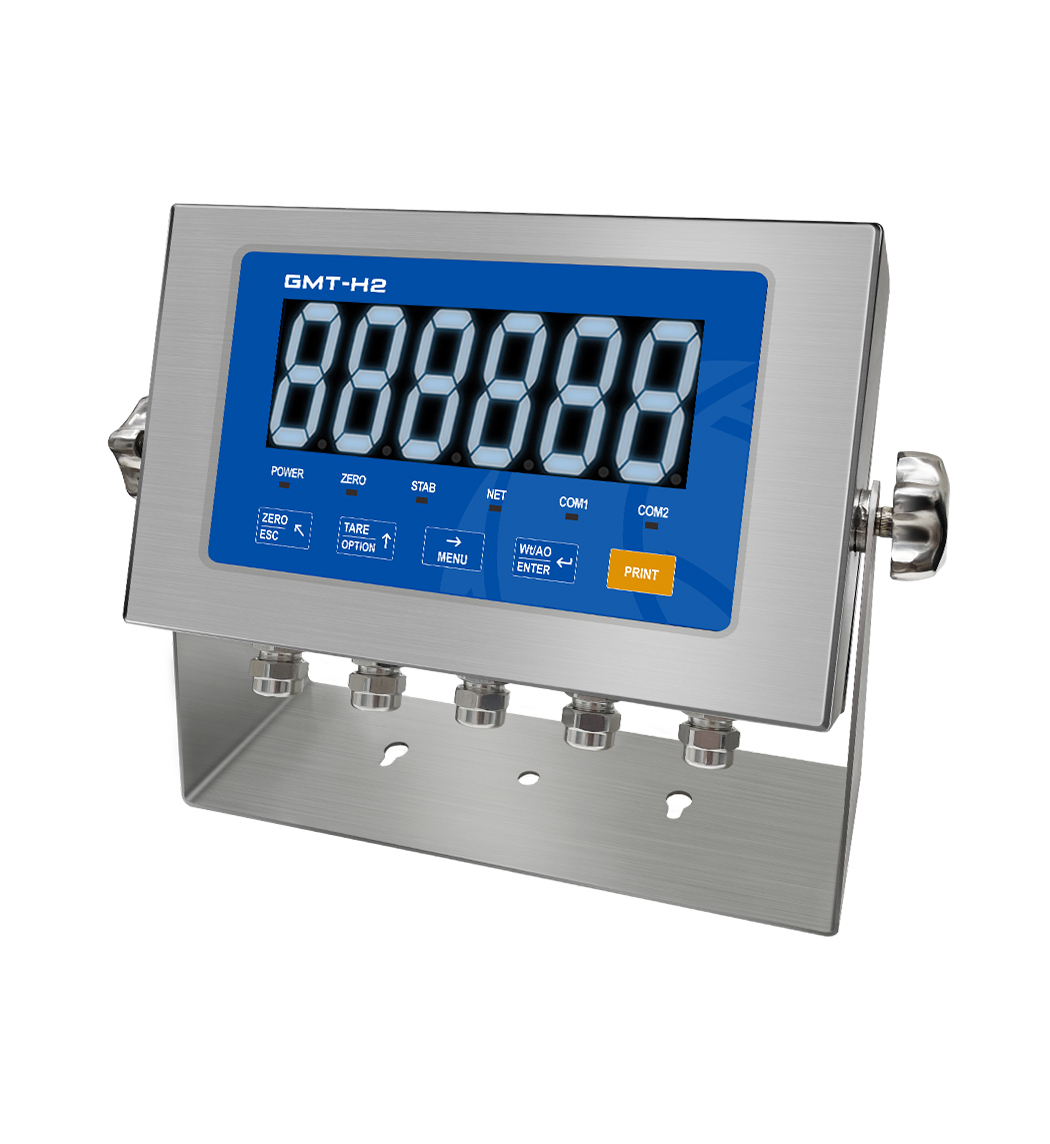

Weighing Transmitter GMT-H2
GMT-H2 is a wall/desk-mount weighing transmitter with stainless steel shell which reaches IP65 protection. 2-inch LED display with 6 digits and indicator lights. It can be widely used in the industrial automation fields, such as silo weighing, platform weighing, weight checking, loss-in-weight, liquid filling, batching, and so on.
Related products
Hardware Highlights
- Standard: ① 2 RS485 & 1 RS232 ports; ② 4 Input 6 Output I/O ports;
- Option1: 1 analog output;
- Option2: Modbus TCP or ProfiNet, or Ethernet IP, or EtherCAT;
(Option1,2 can be selected at the same time)
Software Highlights
- Calibration with or without weights;
- Analog functions;
- Print function;
- I/O preset point function.
| General Specifications | ||
| Model | GMT-H2 | |
| Power Supply | DC 24V (12~30VDC) | |
| Working temperature | -10°C~40°C | |
| Maximum humidity | 90% R.H without dew | |
| Testing standards | Class III 6000 e, 1 μ V/d | |
| Power consumption | About 10W | |
| A/D Conversion | ||
| A/D performance | 24 bit Delta-Sigma | |
| A/D conversion speed | 30/60/120/240/480/960 times/per second | |
| Non-linearity | 0.01%F.S | |
| Gain drift | 10PPM/°C | |
| Input sensitivity | 0.1μV/d | |
| Maximum input voltage | 0~15mV | |
| Display Accuracy | 1/1,000,000 | |
| Load cell excitation | DC 5V,200mA(Max), Up to 10 load cells(350Ω) can be connected | |
| Input impedance | 10ΜΩ |
